20" Wide Built-in Refrigerator-Freezer,
ADA Compliant
Door Swing RHD , White
Summit ALRF48

20" Wide Built-in Refrigerator-Freezer,
ADA Compliant
Door Swing RHD , White
Summit ALRF48

32" height and front-breathing system for built-in installation under ADA compliant counters

Overview :

Height of Cabinet 31.75" (81 cm) Height to Hinge Cap 32.0" (81 cm) Width 19.75" (50 cm) Width with Door Open 20.25" (51 cm) Depth 22.5" (57 cm) Depth with Handle 24.38" (62 cm) Depth with door at 90° 40.25" (102 cm) Capacity 2.68 cu.ft. (76 L) Defrost Type Manual Door White Cabinet White US Electrical Safety ETL Canadian Electrical Safety ETL-C Energy Usage/Year 259.0kWh/year Amps 1.1 Voltage/Frequency 115 V AC/60 Hz Weight 65.0 lbs. (29 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101063034

Refrigerator-Freezer :

Door Swing RHD Reversible Yes Adjustable Shelves Yes Crisper Qty 1 Crisper Finish Transparent Crisper Cover Glass Interior Light Yes Refrigerator - Interior Height 17.5" (44 cm) Refrigerator - Interior Width 16.25" (41 cm) Refrigerator - Interior Depth 17.0" (43 cm) Refrigerator - Shelf Type Glass Refrigerator - Shelf Qty 3 Refrigerator - Full Door Shelves 3 Refrigerator - Temperature Range 35-46º F Refrigerator - Refrigerant Type R600a Refrigerator - Refrigerant Amount 0.92 oz. Freezer - Interior Height 5.75" (15 cm) Freezer - Interior Width 16.25" (41 cm) Freezer - Interior Depth 11.25" (29 cm) Thermostat Type Dial Refrigerant Type R600a Refrigerant Amount 0.92 oz. High Side PSI 180.0 Low Side PSI 80.0 Level Legs 2 Compressor Step Height 6.25" (16 cm) Compressor Step Width 16.25" (41 cm) Compressor Step Depth 6.0" (15 cm) Sound Level 32.9 dB

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

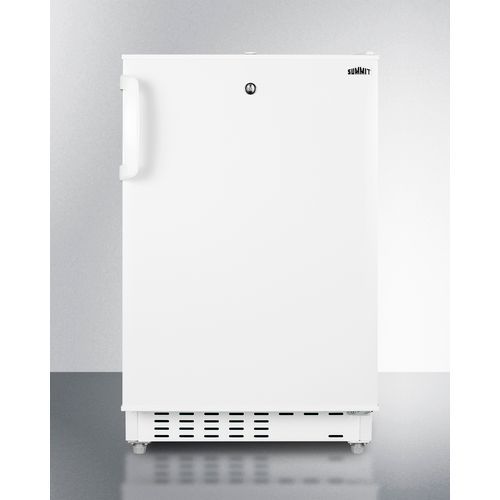

The ALRF48 is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

Inside, the ALRF48 features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.

With its compact size and convenient features, the ALRF48 is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.
