20" Wide Built-In All-Refrigerator,
ADA Compliant
Door-Swing , RHD , White
Summit ALR46W

20" Wide Built-In All-Refrigerator,
ADA Compliant
Door-Swing , RHD , White
Summit ALR46W

32" height and front-breathing system for built-in installation under ADA compliant counters

Overview :

Height of Cabinet 31.75" (81 cm) Height to Hinge Cap 32.0" (81 cm) Width 19.75" (50 cm) Width with Door Open 20.25" (51 cm) Depth 22.5" (57 cm) Depth with Handle 24.38" (62 cm) Depth with door at 90° 40.25" (102 cm) Capacity 3.53 cu.ft. (100 L) Defrost Type Automatic Door White Cabinet White US Electrical Safety ETL Canadian Electrical Safety ETL-C Energy Usage/Year 251.0kWh/year Amps 1.1 Voltage/Frequency 115 V AC/60 Hz Weight 65.0 lbs. (29 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101063027

Refrigerator Features :

Door Swing RHD Reversible Yes Crisper Qty 1 Crisper Finish Transparent Crisper Cover Glass Shelf Type Glass Shelf Qty 3 Full Door Shelf Qty 3 Adjustable Shelves Yes Thermostat Type Digital Fan Type Interior Refrigerant Type R600a Refrigerant Amount 0.99oz. High Side PSI 180.0 Low Side PSI 80.0 Level Legs Qty 2 Wheel Qty 2 Interior Light Yes Temperature Range 35 to 46°F Sound Level 33.2 dB

Dimensions :

Interior Height 23.5" (60 cm) Interior Width 16.25" (41 cm) Interior Depth 17.0" (43 cm) Compressor Step Height 6.25" (16 cm) Compressor Step Width 16.25" (41 cm) Compressor Step Depth 6.0" (15 cm)

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

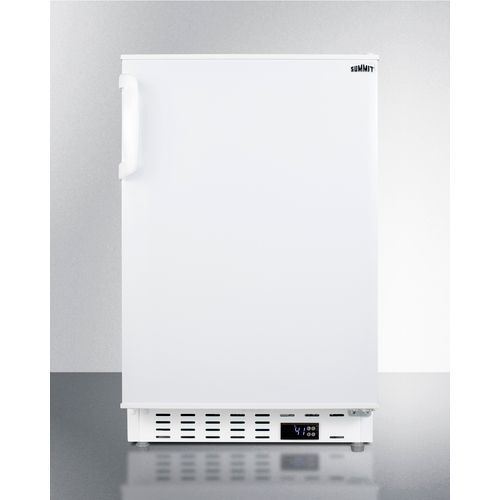

The ALR46W is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

Inside, the ALR46W features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 20" wide, the ALR46W is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36 all-freezer. Additional choices are available in stainless steel and panel-ready exterior finishes.
