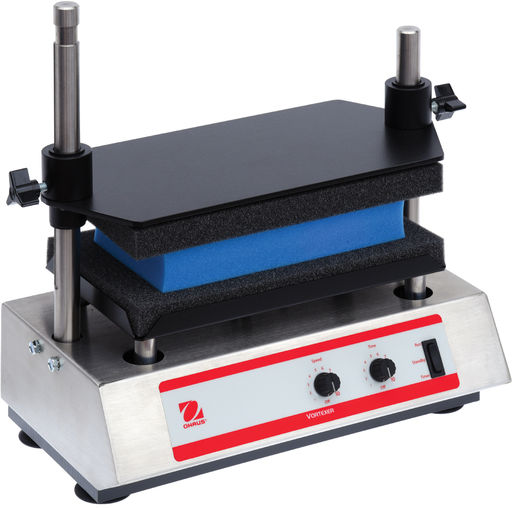

Vortex Mixer, Multi-Tube,
VXMTAL, US
Ohaus 30392164

Vortex Mixer, Multi-Tube,
VXMTAL, US
Ohaus 30392164

Improve Efficiency by Processing up to 50 Samples at a Time Digital models feature touchpad control for easy input of settings, and independent LED displays for speed/time. Timer displays elapsed time and when programmed, shuts off unit when time reaches zero. Digital models feature a programmable pulse mode which allows the user to adjust the pulse-on/pulse-off times between 1- 59 sec intervals, enhancing the vortex action by creating a more vigorous mix. The variable speed microprocessor control provides consistent uniform mixing action. Basic speed and time settings are adjusted with knobs using 1 to 10 dial settings. Product Specifications Control Analog Duty Rating Continuous Orbit 3.6 mm (0.14 in) Speed Range (text) 1200 rpm – 2400 rpm Capacity (text) 4.5 kg Dimensions (Height) 40.6 cm (16.0 in) Dimensions (Length) 24.1 cm (9.5 in) Dimensions (Width) 38.4 cm (15.1 in) Net Weight 20.3 kg (44.8 lb) Power 120V, 5A, 50/60Hz Safety Certification TUV Power Consumption 100 W Tray Size (Length) 18.4 cm (7.25 in) Tray Size (Width) 31.1 cm (12.25 in) Working Environment 39°F – 104°F, 20% – 85%RH, non-condensing Working Environment 4°C – 40°C, 20% – 85%RH, non-condensing
