20" Wide Built-In Pharmacy All-Refrigerator,
ADA Compliant
RHD , Glass
Summit ACR46GLCAL

20" Wide Built-In Pharmacy All-Refrigerator,
ADA Compliant
RHD , Glass
Summit ACR46GLCAL

Overview :

Height of Cabinet 31.5" (80 cm) Width 19.5" (50 cm) Depth 22.75" (58 cm) Depth with Handle 25.0" (64 cm) Depth with door at 90° 41.0" (104 cm) Capacity 2.65 cu.ft. (75 L) Defrost Type Frost-Free Door Glass/SS Cabinet White US Electrical Safety ETL Canadian Electrical Safety ETL-C Amps 1.0 Voltage/Frequency 115 V AC/60 Hz Weight 89.0 lbs. (40 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101083902

Refrigerator Features :

Door Swing RHD Reversible Yes Shelf Type Wire Shelf Qty 3 Adjustable Shelves Yes Thermostat Type Digital Fan Type Interior and Exterior Refrigerant Type R600a Refrigerant Amount 0.99oz. High Side PSI 270.0 Low Side PSI 105.0 Level Legs Qty 4 Interior Light Yes Temperature Range 2º to 8ºC

Dimensions :

Interior Height 21.25" (54 cm) Interior Width 15.0" (38 cm) Interior Depth 16.13" (41 cm) Compressor Step Height 3.5" (9 cm) Compressor Step Width 15.0" (38 cm) Compressor Step Depth 4.75" (12 cm)

Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.

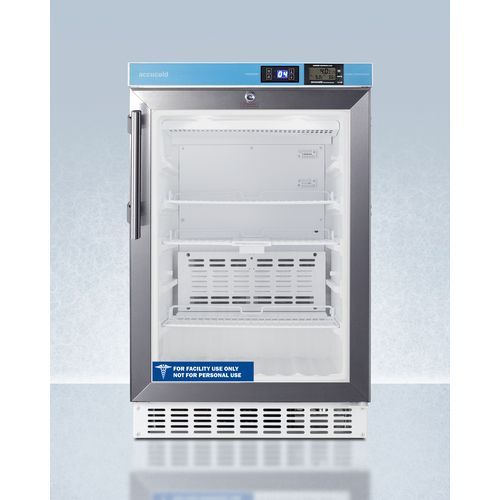

The ACR46GLCAL is an all-refrigerator sized at just under 32" high. It features a front-breathing design for built-in installation under lower ADA compliant counters, with a fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible double pane tempered glass door provides a full view of interior contents, with a stainless steel frame for added durability in any setting. A side-mounted handle is included for user convenience, and four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.

For optimum temperature management, the ACR46GLCAL features an external control panel, allowing users to adjust and monitor the temperature without opening the door. A pre-installed NIST certified thermometer is calibrated in our own ISO/IEC 17025:2017 accredited laboratory to provide an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC and VFC). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed and a certificate of calibration for your facility's records.

Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.

At just under 20" wide, the ACR46GLCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For this unit with a solid door, see model ACR45LCAL. Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line.

Note: Accucold's Pharmaceutical Series refrigerators have been tested to operate within 2.5ºC of the temperature set point and are intended for a wide variety of healthcare storage applications, including vaccines, specimens, pharmaceuticals, and other medical, biological, life science, and industrial materials. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For units with a +/-1ºC variation
