18" Wide Built-In Integrated Dishwasher, ADA Compliant (Panel Not Included) Summit DW186NTADA
Product Description
18" Wide Built-In Integrated Dishwasher, ADA Compliant (Panel Not Included) Summit DW186NTADA
Advanced sound absorption to operate at a quiet 47 dB
Overview :
Height of Cabinet 32.25" (82 cm)
Width 17.5" (44 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.5" (116 cm)
Dishwasher Standard
Door Panel-Ready
Cabinet Stainless Look
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 250.0kWh/year
Amps 12.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
UPC 761101089386
Dishwasher :
Number of Cycles 8
Number of Racks 2
Rack Material Wire
Silverware Basket Yes
Delayed Start Yes
China Setting Yes
Interior Finish Stainless Steel
Interior Height 24.75" (63 cm)
Interior Width 15.25" (39 cm)
Interior Depth 20.0" (51 cm)
Decibel Rating 47.0 dBA
Number of Options 8
Leveling Legs Yes
Place Settings 8
Summit's European dishwashers offer true efficiency for the home, with ultra quiet operation.

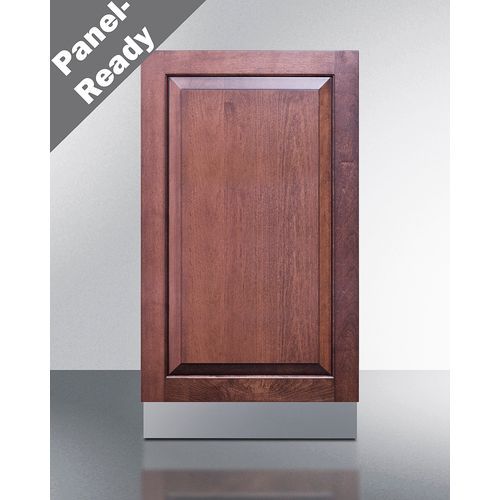

Model DW186NTADA is an 18" wide dishwasher sized at 32.25" high for an easy fit under lower ADA compliant counters. The leveling legs allow you to raise the height up to 34". We include an extra kickplate that covers the front for a cleaner look and to help prevent dirt from going under the unit. This is a fully integrated dishwasher with an unfinished door designed to accept user-provided panels to create a seamless look that blends into your cabinetry. Users also provide their own handle. The control panel is located on top of the door to help ensure a seamless look with your kitchen.
Advanced sound absorption ensures a quiet performance at just 47 dB. This unit offers eight wash programs to accommodate all of your cleaning needs, from an "intensive plus" setting for tough stains to a delicate function to safely handle fragile items. Five auxiliary functions let you further customize the wash and dry settings, with options that include sanitize, extra fast, extra dry, high temperature, and half load for added efficiency. The control panel features easy touch buttons and a digital display for intuitive operation. Additional features include a pause function, 19-hour delay start option, and indicators for rinse aid, water cutoff, and overflow.
Inside, the DW186NTADA features stainless steel construction for true durability. Two spray arms help to ensure your full load is thoroughly washed. The upper slide-out rack can be set in two positions, allowing you to adjust the setup if washing particularly tall items. Side flaps can be used to stack smaller cups, keep glasses in place, or hold long utensils. The lower rack includes two fold-down tines that let you better accommodate oversized pots as needed. We include a removable cutlery basket to make it easier to load and unload silverware.
In addition to this dishwasher, Summit offers a stainless steel version (model DW185SSADA) as well as additional styles with front controls. Browse the full line to explore our assortment.
