Home > 62 lb. Clear Outdoor/Indoor Icemaker
Door Swing RHD , Stainless Steel
Summit BIM68OSGDR
62 lb. Clear Outdoor/Indoor Icemaker
Door Swing RHD , Stainless Steel
Summit BIM68OSGDR
![62 lb. Clear Outdoor/Indoor Icemaker <br> Door Swing RHD , Stainless Steel <br> Summit BIM68OSGDR 62 lb. Clear Outdoor/Indoor Icemaker <br> Door Swing RHD , Stainless Steel <br> Summit BIM68OSGDR](https://s.turbifycdn.com/aah/yhst-12533177228474/newitem-389309.gif)
Product Description
![62 lb. Clear Outdoor/Indoor Icemaker <br> Door Swing RHD , Stainless Steel <br> Summit BIM68OSGDR 62 lb. Clear Outdoor/Indoor Icemaker <br> Door Swing RHD , Stainless Steel <br> Summit BIM68OSGDR](https://s.turbifycdn.com/aah/yhst-12533177228474/newitem-389311.gif)

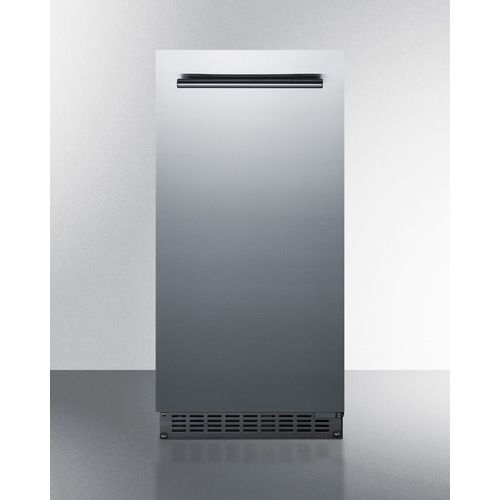

62 lb. Clear Outdoor/Indoor Icemaker
Door Swing RHD , Stainless Steel
Summit BIM68OSGDR
Overview :
Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 14.88" (38 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.5" (62 cm)
Depth with door at 90° 37.25" (95 cm)
Capacity 0.98 cu.ft. (28 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 4.0
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101057088
Icemaker :
Door Swing RHD
Reversible Yes
Daily Ice Production 62.0 lbs. (28 kg)
Ice Storage Capacity 26.0 lbs. (12 kg)
Ice Shape Dice
Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 7.4 oz.
High Side PSI 210.0
Low Side PSI 105.0
Interior Height 12.75" (32 cm)
Interior Width 12.75" (32 cm)
Interior Depth 9.25" (23 cm)
Level Legs 4
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.
Sized at 15" wide, the BIM68OSGDR features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. This model utilizes a gravity drain system.
The BIM68OSGDR produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior.
Designed and manufactured for us in South Korea, the BIM68OSGDR is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSGDRIF) will be available later this year.
NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
