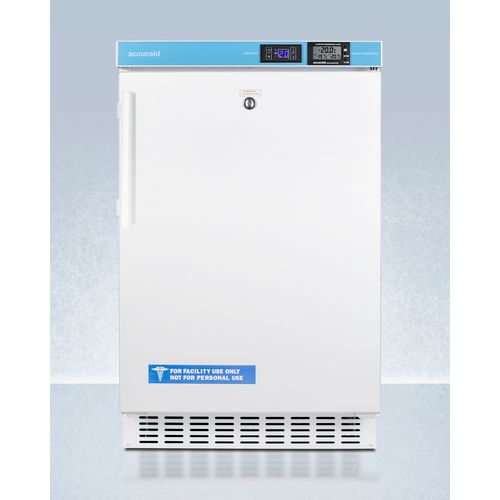

20" Wide Built-In Pharmacy All-Freezer,
ADA Compliant
RHD , White
Summit ACF33LCAL
ADA Compliant
RHD , White
Summit ACF33LCAL
Product Description
20" Wide Built-In Pharmacy All-Freezer,
ADA Compliant
RHD , White
Summit ACF33LCAL
Specially designed for vaccine storage, with an external NIST calibrated current and high/low temperature readout
Overview :
Height of Cabinet 31.38" (80 cm) Width 19.5" (50 cm) Depth 22.75" (58 cm) Depth with Handle 23.63" (60 cm) Depth with door at 90° 41.0" (104 cm) Capacity 2.65 cu.ft. (75 L) Defrost Type Frost-Free Door White Cabinet White US Electrical Safety ETL Canadian Electrical Safety ETL-C Sanitation ETL-S Amps 2.0 Voltage/Frequency 115 V AC/60 Hz Weight 81.0 lbs. (37 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101089249
Freezer :
Door Swing RHD Reversible Yes Interior Height 21.25" (54 cm) Interior Width 15.0" (38 cm) Interior Depth 16.0" (41 cm) Shelf Type Wire Shelf Qty 3 Adjustable Shelves Yes Thermostat Type Digital Interior Light Yes Fan Type Interior and Exterior Refrigerant Type R600a Refrigerant Amount 1.23 oz. High Side PSI 270.0 Low Side PSI 105.0 Compressor Step Height 3.5" (9 cm) Compressor Step Width 15.0" (38 cm) Compressor Step Depth 4.75" (12 cm) Temperature Range -30 to -11.6ºC /-22 to +11ºF Sound Level 38.1 dB
Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.
The ACF33LCAL all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.
For optimum temperature management, the ACF33LCAL features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC and VFC). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACF33LCAL.)
Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.
At just under 20" wide, the ACF33LCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45LCAL (solid door) or ACR46GLCAL (glass door). Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase.
ADA Compliant
RHD , White
Summit ACF33LCAL
Specially designed for vaccine storage, with an external NIST calibrated current and high/low temperature readout
Overview :
Height of Cabinet 31.38" (80 cm) Width 19.5" (50 cm) Depth 22.75" (58 cm) Depth with Handle 23.63" (60 cm) Depth with door at 90° 41.0" (104 cm) Capacity 2.65 cu.ft. (75 L) Defrost Type Frost-Free Door White Cabinet White US Electrical Safety ETL Canadian Electrical Safety ETL-C Sanitation ETL-S Amps 2.0 Voltage/Frequency 115 V AC/60 Hz Weight 81.0 lbs. (37 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101089249
Freezer :
Door Swing RHD Reversible Yes Interior Height 21.25" (54 cm) Interior Width 15.0" (38 cm) Interior Depth 16.0" (41 cm) Shelf Type Wire Shelf Qty 3 Adjustable Shelves Yes Thermostat Type Digital Interior Light Yes Fan Type Interior and Exterior Refrigerant Type R600a Refrigerant Amount 1.23 oz. High Side PSI 270.0 Low Side PSI 105.0 Compressor Step Height 3.5" (9 cm) Compressor Step Width 15.0" (38 cm) Compressor Step Depth 4.75" (12 cm) Temperature Range -30 to -11.6ºC /-22 to +11ºF Sound Level 38.1 dB
Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.
The ACF33LCAL all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.
For optimum temperature management, the ACF33LCAL features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC and VFC). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACF33LCAL.)
Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.
At just under 20" wide, the ACF33LCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45LCAL (solid door) or ACR46GLCAL (glass door). Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase.
